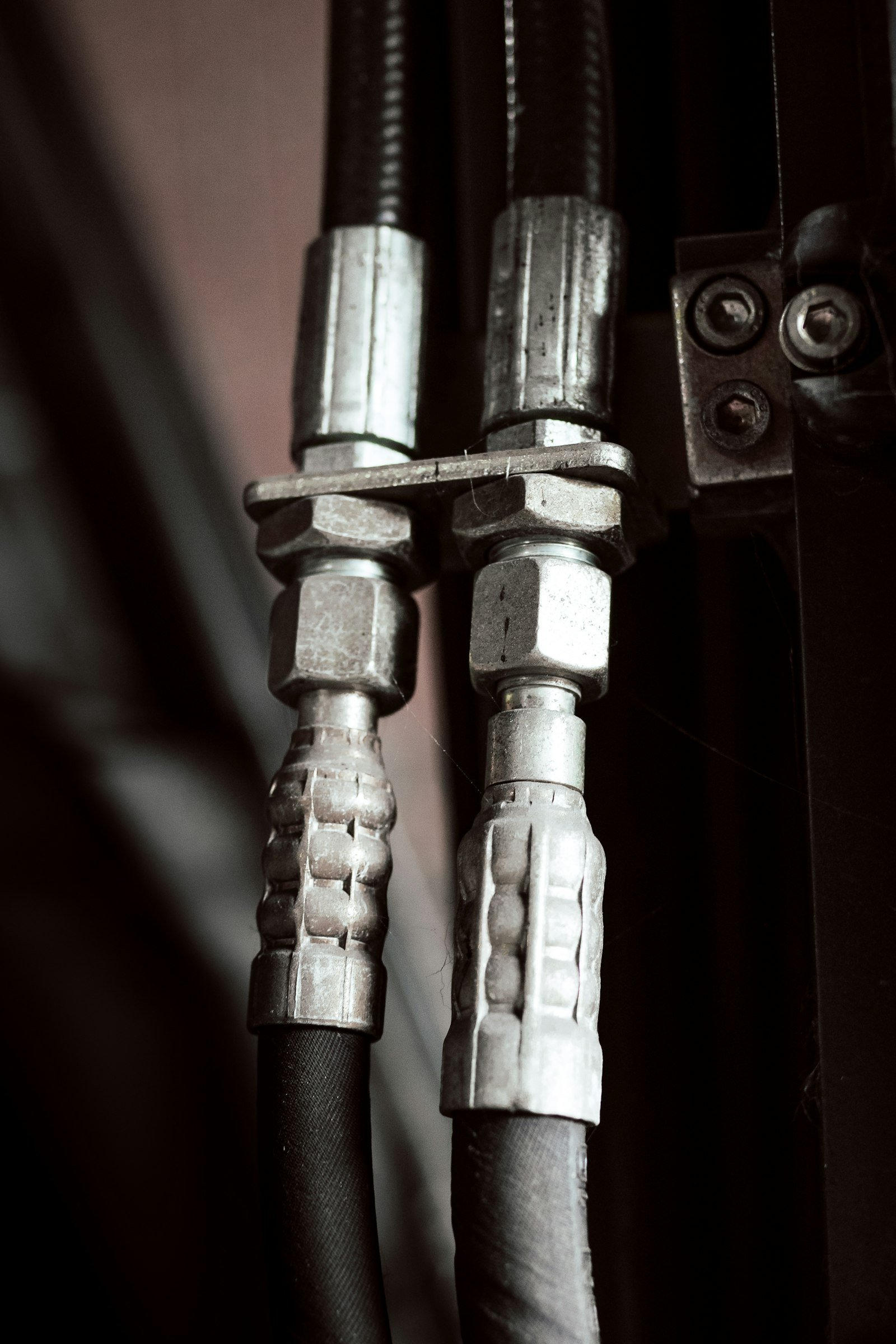

Hose End Fittings & Ferrules
Crimp and reusable hose-end fittings matched to your hose construction, thread standard, and assembly method for a reliable, tested hose assembly.
Need Hose-End Fittings?
Share your hose type and thread standard and we’ll confirm the right fitting or full assembly.
Send RequirementHose-End Fittings Matched to Your Hose & Assembly Method
Hose-end fittings terminate a hydraulic hose with the thread, flange, or quick-connect interface your circuit requires. Selection depends on hose construction (wire braid, wire spiral, or textile), crimp diameter, and the mating thread standard — getting any of these wrong is one of the most common causes of hose assembly failure. Velqor supplies crimp-style hose-end fittings matched to common hose series, along with field-attachable and reusable options where a workshop needs to assemble hoses on-site.
- Crimp-style fittings matched to wire-braid, wire-spiral, and textile hose
- Straight, 45°, 90°, and long-drop 90° bend configurations
- Thread standards: BSP, NPT, JIC 37° flare, ORFS, metric DIN, flange (Code 61/62)
- Field-attachable and reusable options for workshop assembly
- Matched to hose ID, construction, and crimp specification before confirming a quote
Hose End Fittings & Ferrules
Variants Available
Configurations to Match Your Hose Assembly
Every configuration below is confirmed against your requirement, drawing, or sample before production.
In-line crimp fittings for direct, unbent hose terminations.
Angled crimp fittings for tight routing and reduced hose stress at the termination.
Code 61/62 flange-terminated fittings for high-pressure manifold connections.
Non-crimped fittings assembled without a crimping machine, for field repair or low-volume runs.
Ferrule and stem sized to 1- and 2-wire braid hose constructions.
Non-standard lengths, bend angles, or thread combinations built to your drawing or sample.
Specifications
Typical Specification Inputs
Straight, 45°, 90°, long-drop 90°, or flange-head crimp fitting
Matched to wire-braid, wire-spiral, or textile hose construction and ID
BSP, NPT, JIC 37° flare, ORFS, metric DIN, or Code 61/62 flange
Matched to hose OD and ferrule specification for the selected hose series
Carbon steel (plated) or stainless steel, as per requirement
Crimped or field-attachable/reusable, confirmed per your assembly capability
Confirmed per requirement, hose series, and material selection
Assembly pressure-testing available where specified
Final specifications, dimensions, materials, and performance details are confirmed against approved drawings, samples, or order requirements before production.
Applications
Where These Fittings Are Used
Terminating hose for mobile and industrial hydraulic circuits.
Crimp and reusable fittings for in-house or field assembly operations.
Hose assemblies for construction, agricultural, and material-handling machinery.
Terminated hose runs connecting pumps, valves, and cylinders.
Reusable fittings for on-site hose repair without a crimping machine.
Non-standard lengths, bends, or thread combinations engineered to your drawing.
RFQ Checklist
To Quote This Product Accurately, We Need a Few Details
Share as much as you can — a drawing, sample, or existing part reference speeds up the process considerably.
Frequently Asked Questions
Can you supply the fitting only, or a full crimped hose assembly?
Both — we supply hose-end fittings on their own, or a complete crimped and tested hose assembly to your length and configuration.
How do I match a fitting to my existing hose?
Share the hose brand/series if visible, or the ID, OD, and reinforcement type (wire braid, spiral, textile) — a photo of the hose markings helps confirm the match.
What's the difference between crimped and reusable fittings?
Crimped fittings need a crimping machine and are the standard for factory-built assemblies; reusable fittings can be field-assembled without one, useful for repairs or low-volume runs.
Can you supply flange-head hose ends?
Yes, Code 61 and Code 62 flange-terminated hose-end fittings are available for high-pressure manifold connections.
Do you pressure-test hose assemblies?
Yes, assembly pressure-testing is available where specified in your requirement.
What lead times should I expect?
Lead time depends on hose series, fitting configuration, and quantity — share your requirement and we'll confirm a timeline with your quote.
Can Velqor support bulk export orders?
Yes, Velqor is set up for export-ready packaging and documentation. Share your destination country and quantity so we can confirm logistics.
Get Started
Ready to Source Hose-End Fittings?
Send your hose type or sample, fitting configuration, thread standard, and quantity. We'll review your requirement and confirm the right fitting or full assembly.
