Fittings

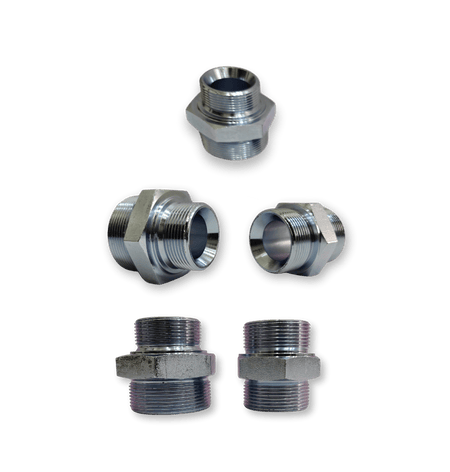

Hex Nipple Adapter

Ensure secure, leak proof connections in hydraulic systems and industrial piping with our precision machined Hex Nipple Adapters.

Model No: AD-HXN
Material: SS304 / SS316 / Carbon Steel (Zinc-Plated)
Construction: Machined from Solid Bar Stock
End Connector: BSP / BSPT / NPT (Male x Male)
Hex Type: Hex Body for Easy Wrench Grip
Thread Sizes Available: 1/4" to 2" (custom sizes on request)
Pressure Rating: Up to 400 Bar (Varies by size and material)
Temperature Range: -20°C to +200°C
Finish: Bright Zinc-Plated / Natural / Electropolished
Application: Hydraulic Systems, Pneumatic Lines, Oil & Gas, Chemical Plants

Custom thread configurations, sizes, and materials are available upon request to meet specific application requirements.

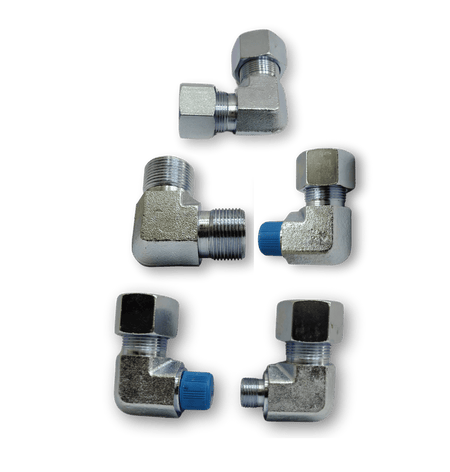

90° Compression Tube Elbow

Achieve secure and leak free 90° connections in hydraulic and instrumentation lines with our precision engineered Compression Tube Elbows.

Model No: CF-90EL
Material: SS304 / SS316 / MS Zinc-Plated
Construction: Forged or Machined from Solid Bar Stock
End Connection: Compression x Male Thread / Compression x Female Thread
Thread Types: BSP / BSPT / NPT / UNF
Tube OD Range: 1/4" to 1" (or 6 mm to 25 mm)
Thread Size Range: 1/8" to 1"
Working Pressure: Up to 400 Bar (varies by size and material)
Temperature Rating: -40°C to +230°C
Finish: Natural / Electropolished / Zinc-Plated
Application: Hydraulic Lines, Instrumentation Panels, Chemical Processing, Gas Handling Systems

Offered in a variety of materials, thread standards, and sealing configurations to suit custom project specifications.

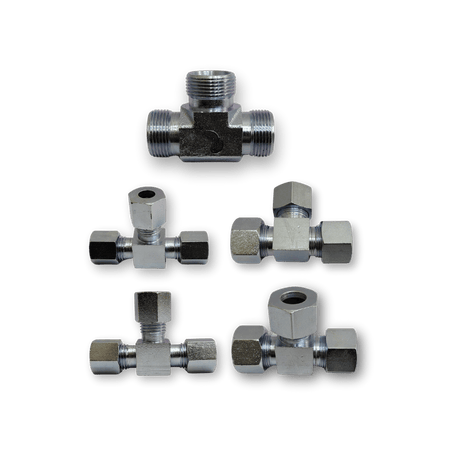

Equal Tee

Achieve efficient flow distribution in demanding hydraulic and fluid transfer systems with our high-performance Forged Equal Tee.

Model No: FT-MMMTEE
Material: MS/CS, SS304, SS316
Construction: Forged / Machined from Solid Bar Stock
End Connector: Male Threaded BSP / BSPT / NPT
Configuration: Equal Tee (Male x Male x Male)
Available Sizes: 1/8" to 1"
Working Pressure: Up to 400 Bar, depending on size and material
Finish: Natural / Zinc-Plated / Electropolished
Application: Hydraulic Systems, Instrumentation, Oil & Gas, Chemical Transfer

Available in a wide range of thread types, surface finishes, and material combinations tailored to your specific system requirements.

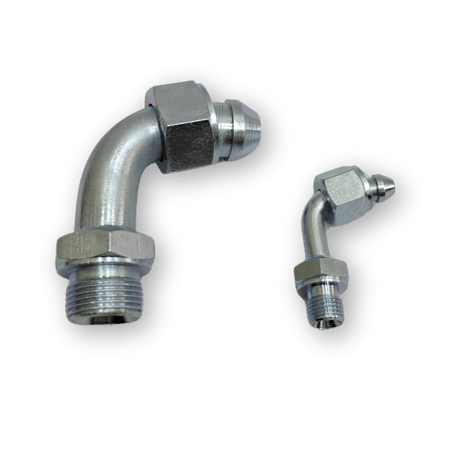

Male / Female 90 ° Bend

Enable space efficient routing and secure hydraulic connections with our high performance 90° Elbow Fittings, designed for high-pressure applications.

Model No: FT-90MFS
Material: MS/CS, SS304, SS316
Construction: Machined from Solid Bar Stock / Cold-Formed
End Connector: Male BSP / BSPT / NPT x Female Swivel (24° Cone)
Bend Type: 90° Elbow
Available Sizes: 1/4" to 1-1/4"
Working Pressure: Up to 400 Bar, depending on size and material
Finish: Zinc-Plated / Electropolished / Natural
Application: Hydraulic Hose Assemblies, Equipment Connections, Mobile & Industrial Hydraulics

Available in a variety of configurations, plating options, and thread types to match your hydraulic system requirements precisely.

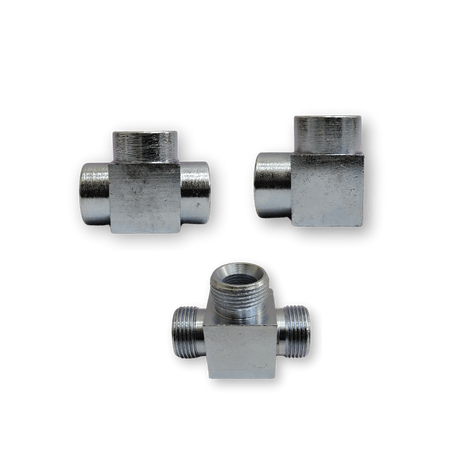

Male / Female Tee Elbow

Ensure seamless connection and distribution of flow across three pipelines with our high performance 3-Way Tee Fittings, designed for durability and precision in demanding industrial environments.

Model No: VF-3WTF
Material: MS/CS, SS304, SS316
Construction: Machined from Solid Bar Stock
End Connector: BSP / BSPT / NPT
Connection Type: Female Threaded / Male Threaded / Mixed
Configuration: Equal Tee / Reducing Tee
Available Sizes: 1/4" to 2"
Working Pressure: Up to 400 Bar, depending on size and material
Temperature Rating: -20°C to +200°C (depending on sealing and material)
Applications: Hydraulic systems, Instrumentation lines, Pneumatic circuits, and general purpose industrial flow control

Available with customizable configurations and materials to suit various fluid and pressure requirements.

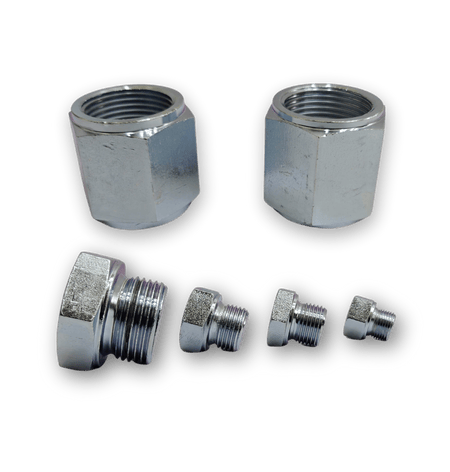

Hex Female Coupling / Plug

Achieve secure and leak proof connections in fluid and gas systems with our high quality Hex Nipples and Couplers, engineered for strength, durability, and compatibility with a wide range of system requirements.

Model No: VF-HNC
Material: MS/CS, SS304, SS316
Construction: Precision Machined from Solid Bar Stock
End Connector: BSP / BSPT / NPT
Connection Type: Male × Male (Hex Nipple), Female × Female (Hex Coupler)
Thread Types: Parallel / Tapered
Available Sizes: 1/8" to 2"
Working Pressure: Up to 600 Bar (depending on material and thread size)
Temperature Range: -40°C to +250°C (Material dependent)
Applications: Hydraulic lines, pneumatic tools, instrumentation tubing, industrial piping systems

Available in a variety of custom sizes, thread types, and materials to meet your specific application and environmental needs.

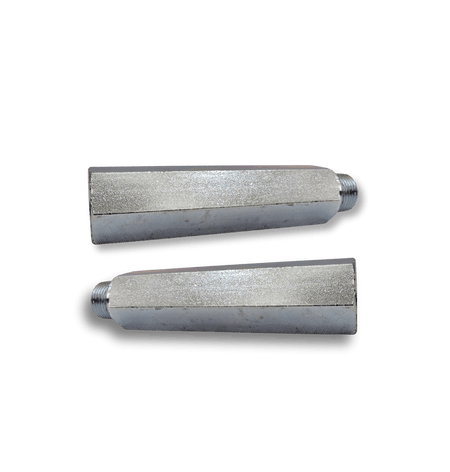

Male / Female Extra Long Hex Nipple

Enable precise extension and secure connectivity in high pressure applications with our robust Male Female Extra Long Hex Nipple, engineered for strength, longevity, and reliability under extreme conditions.

Model No: VF-MFELN
Material: MS/CS, SS304, SS316
Construction: Machined from Solid Bar Stock
End Connector: BSP / BSPT / NPT
Connection Type: Male × Female Thread
Design Type: Extra Long Hex Body for added torque support
Available Sizes: 1/4" to 2"
Working Pressure: Up to 400 Bar (varies by size and material)
Temperature Range: -40°C to +200°C
Applications: Hydraulic lines, Instrumentation, Pneumatic connections, Industrial extensions

Available with various thread combinations, lengths, and materials to meet your customized application requirements.

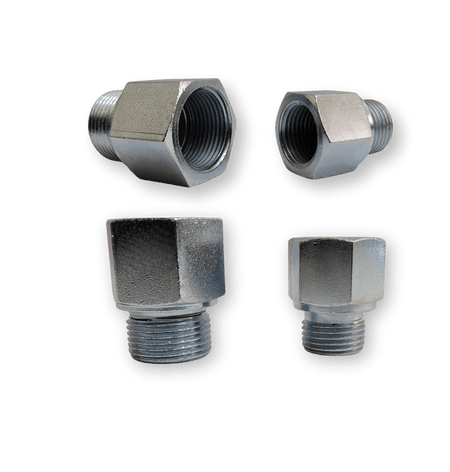

Reducer Fittings

Redirect flow efficiently and securely in tight spaces with our high performance Male Female Elbow Adapters, engineered for reliable operation in demanding hydraulic and pneumatic systems.

Model No: VF MFEA
Material: MS/CS, SS304, SS316
Construction: Machined from Solid Bar Stock
End Connector: BSP / BSPT / NPT
Connection Type: 90° Elbow Male Female Thread
Design Type: Hex Body for easy wrenching and compact installation
Available Sizes: 1/4" to 2"
Working Pressure: Up to 400 Bar (depending on material and size)
Temperature Range: -40°C to +200°C
Applications: Hydraulic circuits, Pneumatic systems, Industrial piping layouts, Instrumentation lines

Customizable in various thread types, sizes, and materials to meet your specific system requirements.
