Product Details

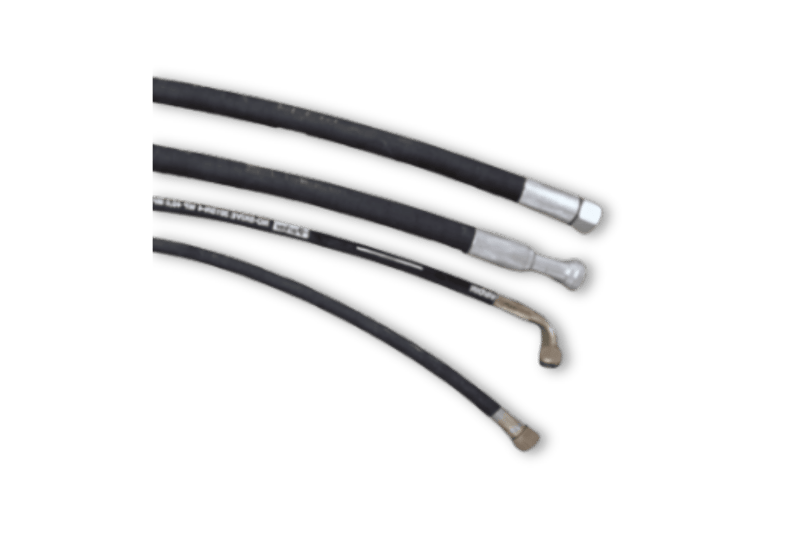

Engineered for demanding hydraulic systems in mining, construction, and mobile equipment. These hoses are built with spiral wire reinforcement to handle extreme pressure, high impulse cycles, and rugged operating conditions.

731 / 721: High-performance 4- or 6-spiral wire hoses designed for ultra high-pressure hydraulic circuits. Withstands up to 38.0 MPa (5500 PSI) and is ideal for heavy mobile equipment and mining machinery.
Temperature Range: -40°C to +121°C
Size Range: 3/8" to 2"

781: A spiral hose optimized for frequent high-impulse applications. Offers a long service life in harsh operating environments such as hydraulic presses and off-road machinery.
Pressure Rating: Comparable to 731 series
Temperature Range: -40°C to +121°C
Size Range: Typically 3/8" to 2"

792PM / SPIRAFLEX: Flexible spiral-reinforced hose that balances high pressure capability with better handling. Ideal for compact equipment and mobile systems where routing flexibility is critical.
Pressure Rating: Up to 420 Bar
Temperature Range: -40°C to +100°C
Size Range: 3/8" to 1 1/2"

701: Built for ultra high-pressure applications in rugged industrial setups. Its strong spiral construction ensures stability under severe hydraulic loads.
Pressure Rating: Up to 45 MPa
Temperature Range: -40°C to +121°C
Size Range: 3/8" to 2"
