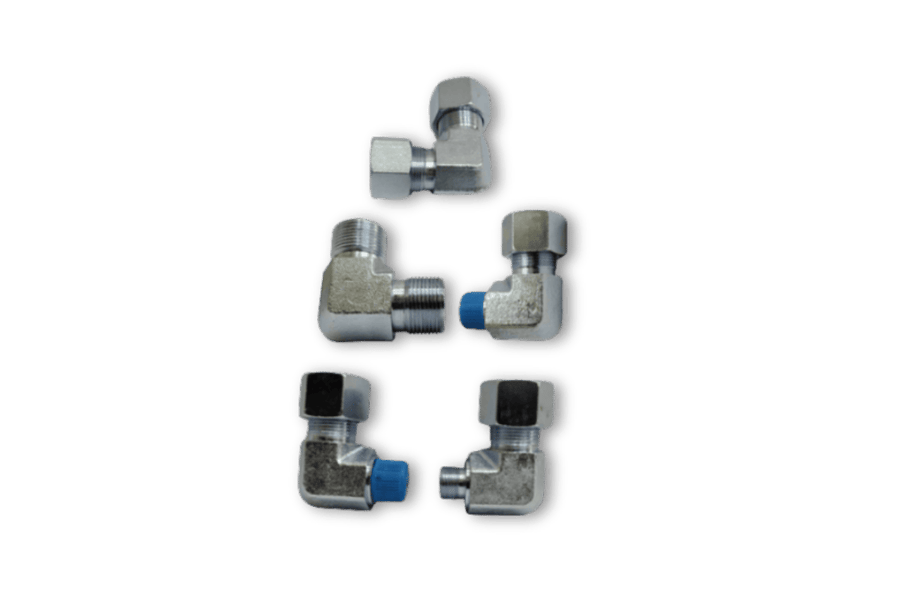

90° Compression Tube Elbow

Model No	CF-90EL
Material	SS304 / SS316 MS Zinc Plated
Construction	Forged or Machined from Solid Bar Stock
End Connection	Compression x Male thread / Compression x Male thread
Thread Type	BSP / BSPT / NPT / UNF
Tube OD Range	1/8" to 1" (or 6 mm to 25mm)
Thread Size Range	1/8" to 1"
Working Pressure	Up to 400 Bar (varies by size and material)
Temperature Rating	-40°C to +230°C
Finish	Natural / Electropolished / Zinc-Plated
Application	Hydraulic Lines, Instrumentation Panels, Chemical Processing, Gas Handling Systems
